Production Photo Gallery
We are pleased to transparently share our weekly production processes with you. We are at your service with our meticulous quality control procedures, state-of-the-art technology and durable equipments.
Bitumen Modification Unit MB-25
Manufacturing of the MB-25 bitumen modification unit at the ErichHahn production facility. The unit produces all grades of PMB, PM and PG bitumens to all applicable standards. ErichHahn is carrying out the design, manufacture, supply and installation of a bitumen terminal for the Georgian company Rustav Oil.
Mobile Tanks MT100
Manufacturing of mobile tanks for Rustav Oil at the ErichHahn production facility. ErichHahn is carrying out the design, manufacture, supply and installation of a bitumen terminal comprising a bitumen modification unit MB-25, a bitumen pumping and distribution unit HPDU-93, and three mobile tanks MT100. The tanks were transported to the customer from the workshop by road.
Truck Unloading Station ATU-2
Assembly of the automatic truck unloading station ATU-2 with two hoses for tank trucks. The ErichHahn truck unloading unit is in high demand and is supplied by the company to all continents. System components include pumping equipment, filters and intake hoses. Connection diameter: 100 mm. Overall dimensions (L×W×H): 6000×2500×2600 mm.
Mobile Truck Loading Unit MTL
Assembly of the mobile truck loading unit MTL. Truck loading capacity: 2,000 t/day. The unit includes a supporting steel structure with a ladder and service platform, a transfer gangway, a closed top-loading device, a control station, and process equipment for organizing the tank-truck loading process.

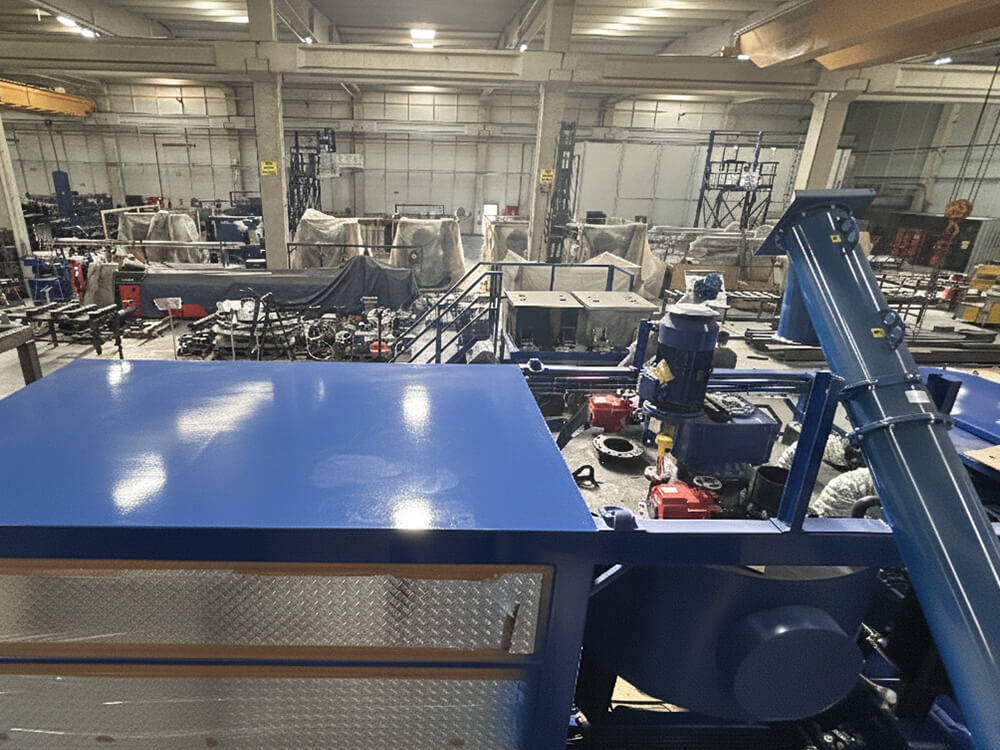

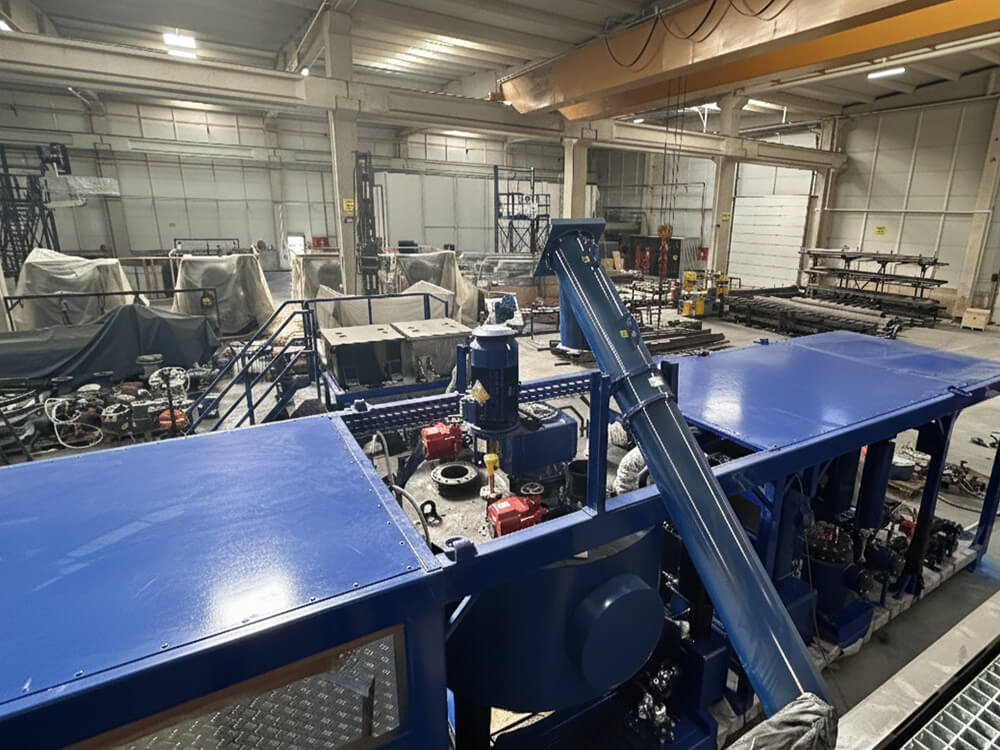

MB-25 Assembly
These shots show the scale and complex structure of our Polymer Modified Bitumen Plant MB-25 during the assembly process. We guarantee the durability and reliability of our equipment through the latest technology and our rigorous quality control procedures.

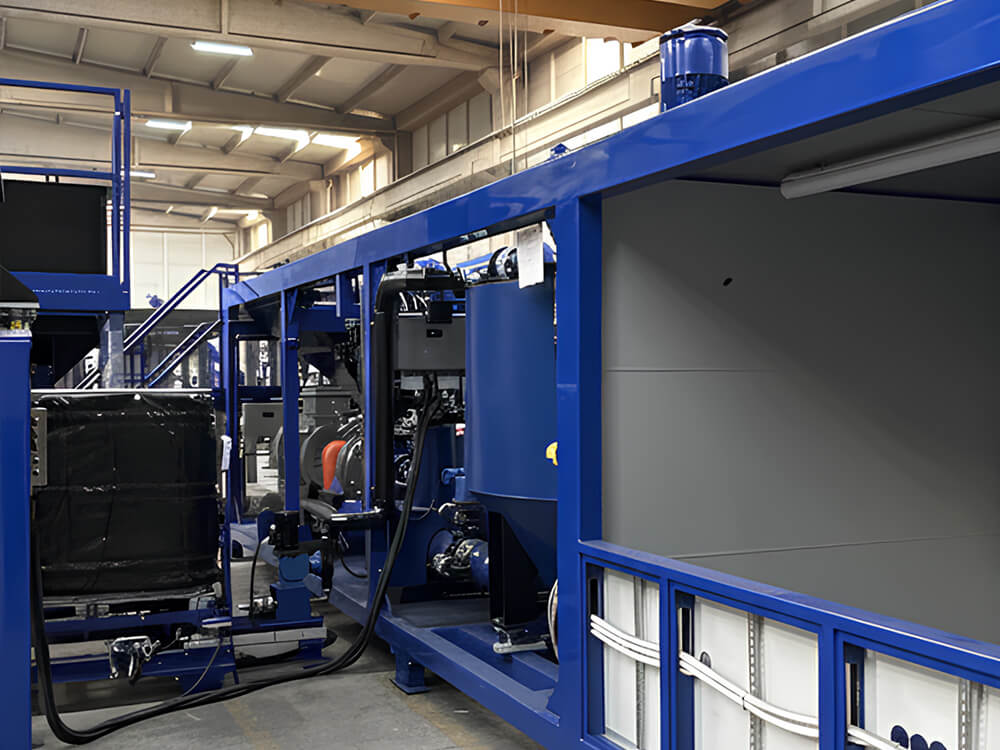

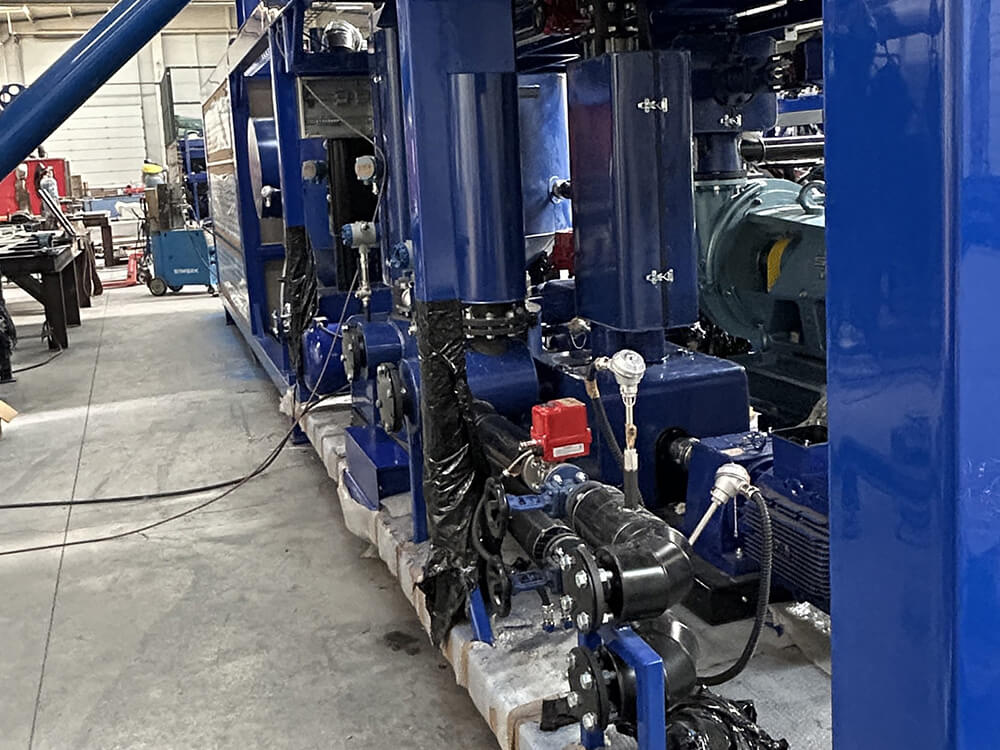

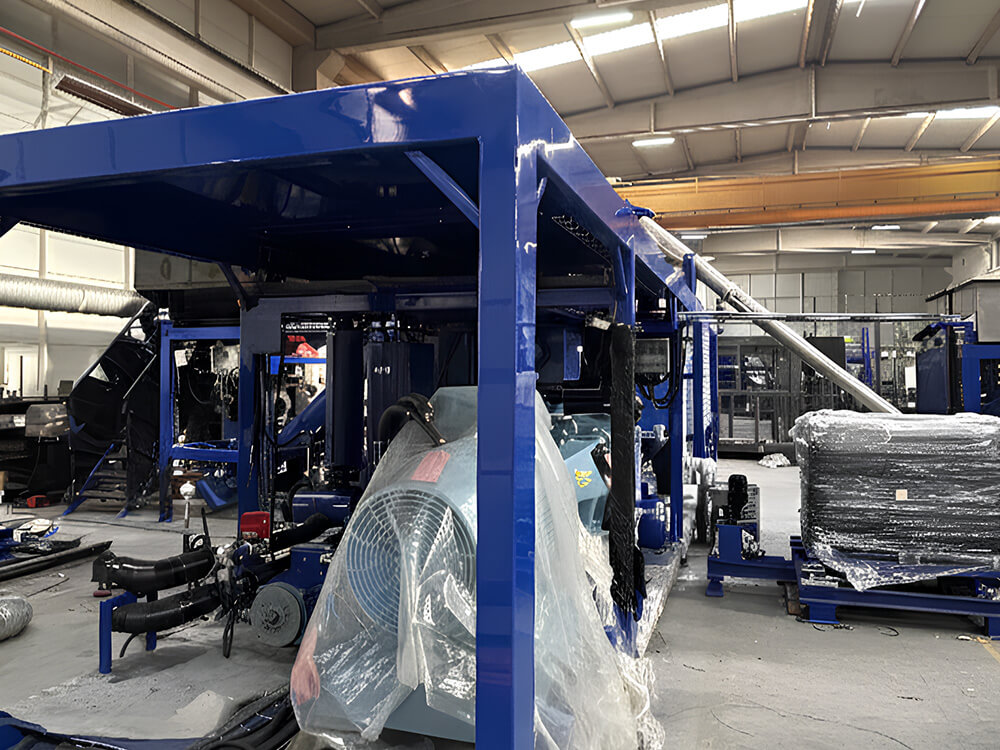

Hydraulic and
Automation Systems
Details illustrating the meticulous installation of piping, electrical connections, and automation links on our MB-25 plant. As we integrate critical pumping and measuring units, we apply the highest engineering standards to ensure a flawless and safe feed of bitumen and polymers.

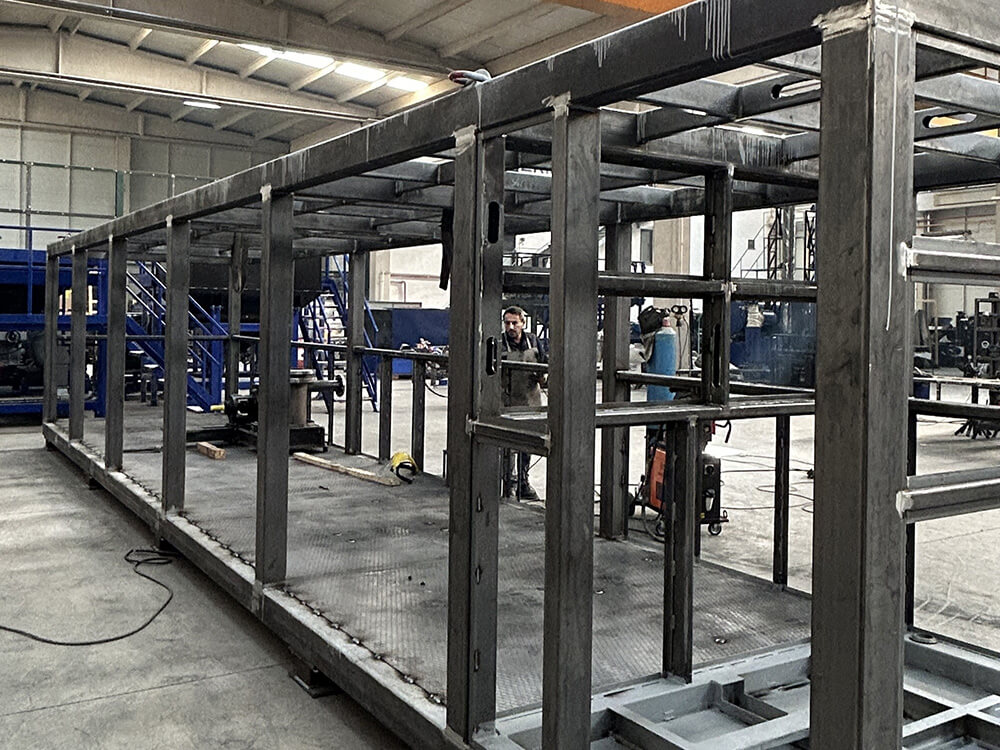

Preparation of the
MB-25 Facility Chassis
This photograph demonstrates the care we take in manufacturing the robust steel structure that forms the foundation of our plant. Through high-quality steel and precision welding, we guarantee the maximum durability of the MB-25 against the toughest operating conditions.

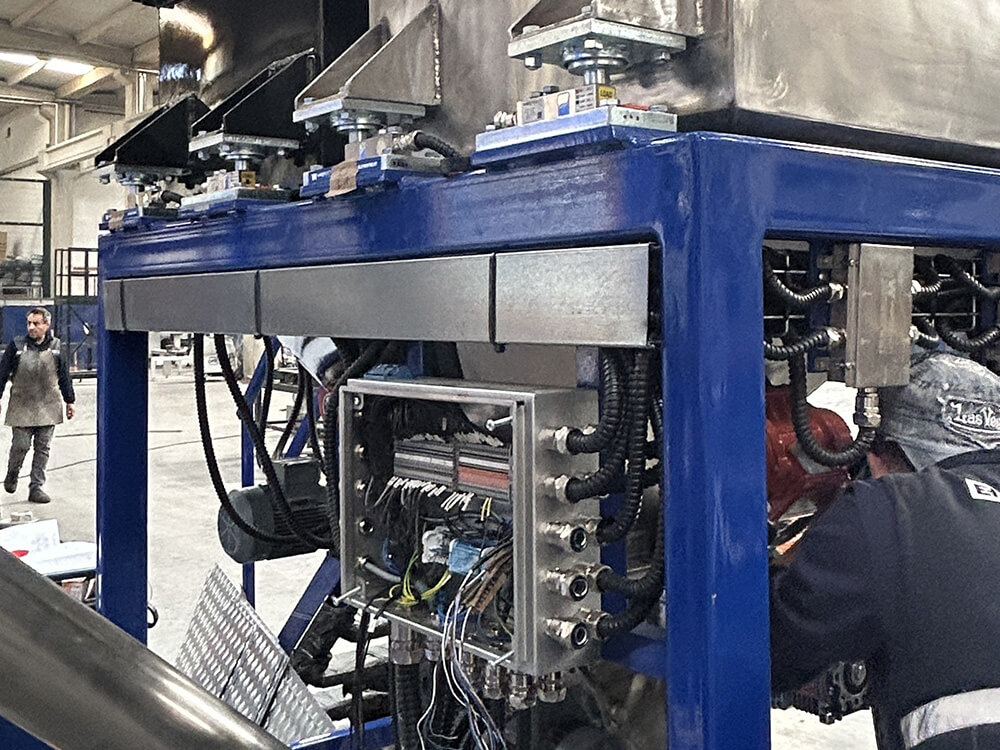

Polymer Dosing Section
You are looking at the most crucial part of the MB-25: the loading hoppers and our high-precision polymer dosing system. We use load cells in this critical stage to ensure absolute accuracy in mixing ratios and consistent quality of the final PMB product.
