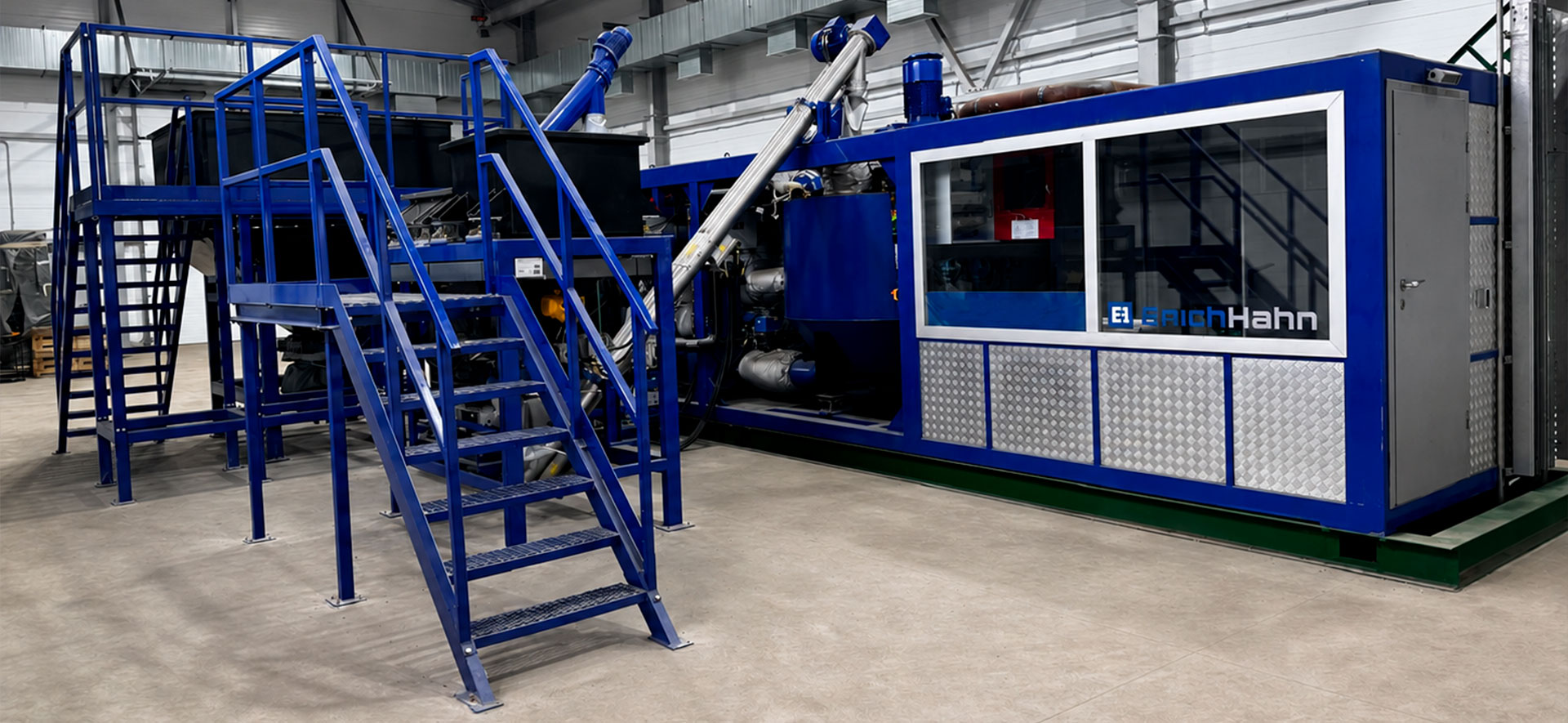

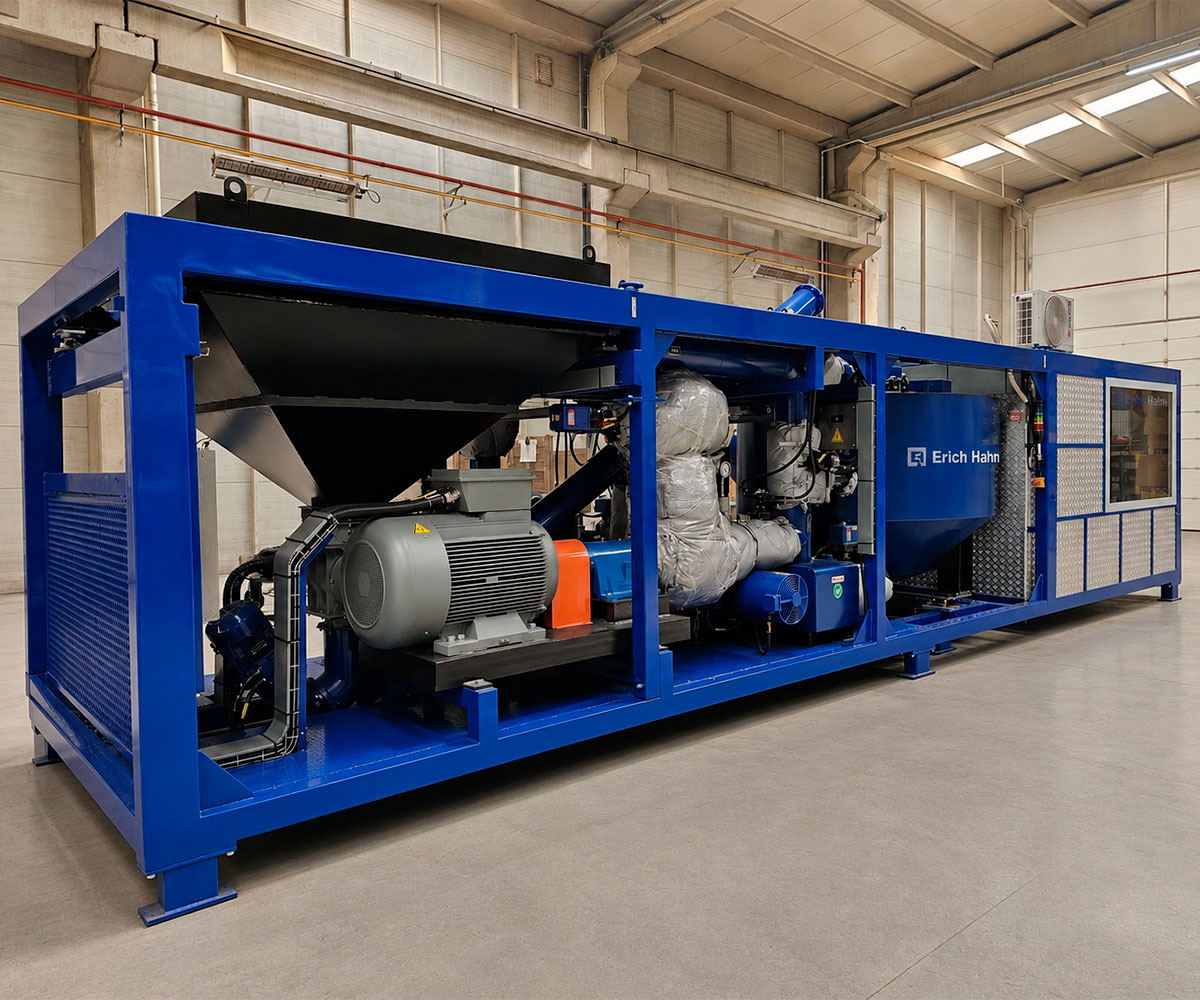

The ErichHahn MB-25 | MB-50 unit is designed for the production of polymer-modified bitumen and ensures the production of all grades of PVB, PM, and PG bitumen in accordance with both domestic (GOST R 52056, GOST R 58400.1) and foreign (EN 14023) standards.
The capacity of the MB-25 ranges from 25 to 35 t/h, while the MB-50 has a capacity of 50 to 60 t/h.
The unit is designed using continuous (flow) production technology and is capable of meeting the highest customer requirements for the production of high-quality road material. The flow technology ensures maximum production flexibility. The modular design and modern equipment enable the installation to be quickly implemented both in the equipment of new facilities and in the modernization of existing production lines.
ErichHahn MB-25 Advantages
The plant is designed using continuous (in-line) production technology and is able to satisfy the highest customer requirements for the production of high-quality road material.

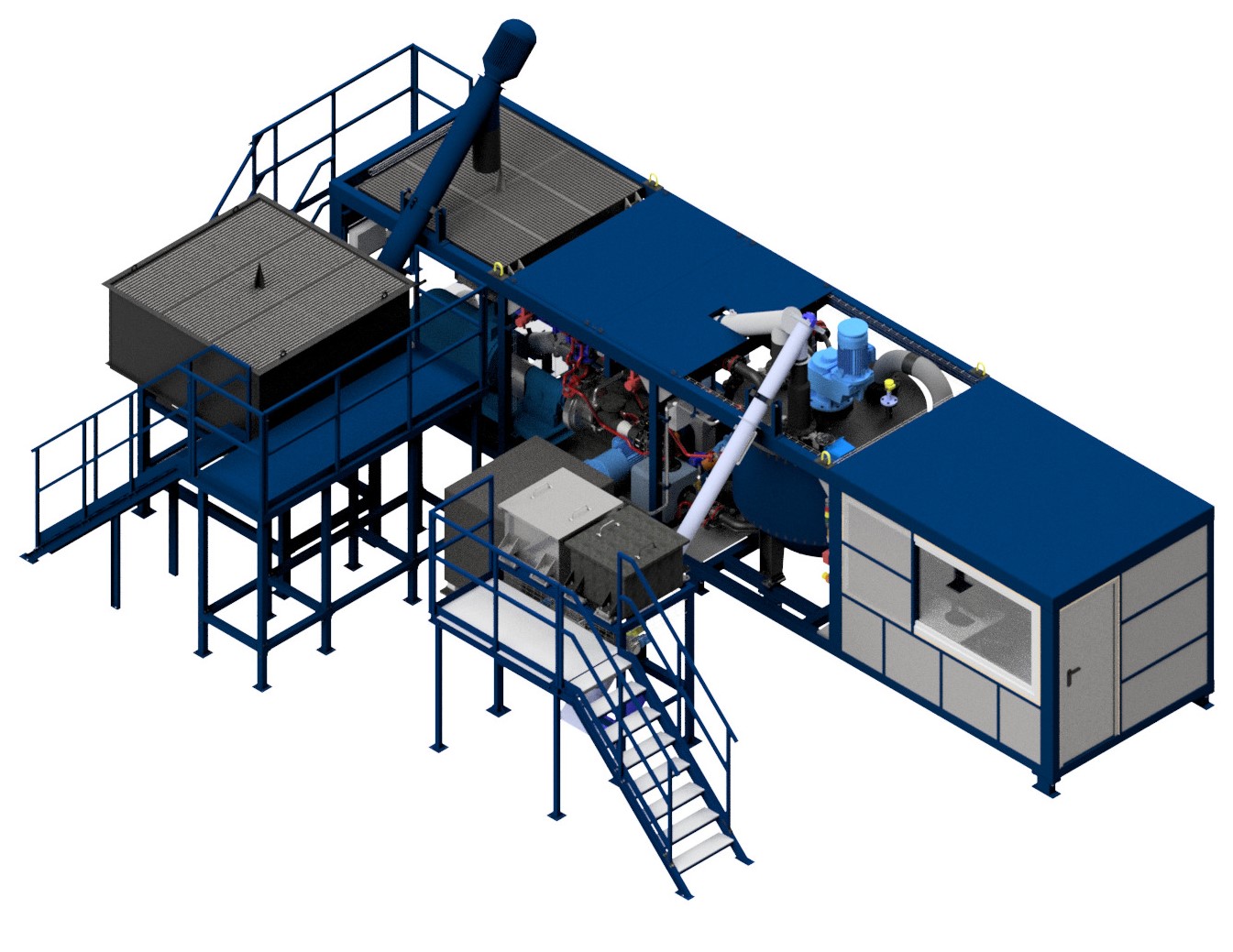

MB-25

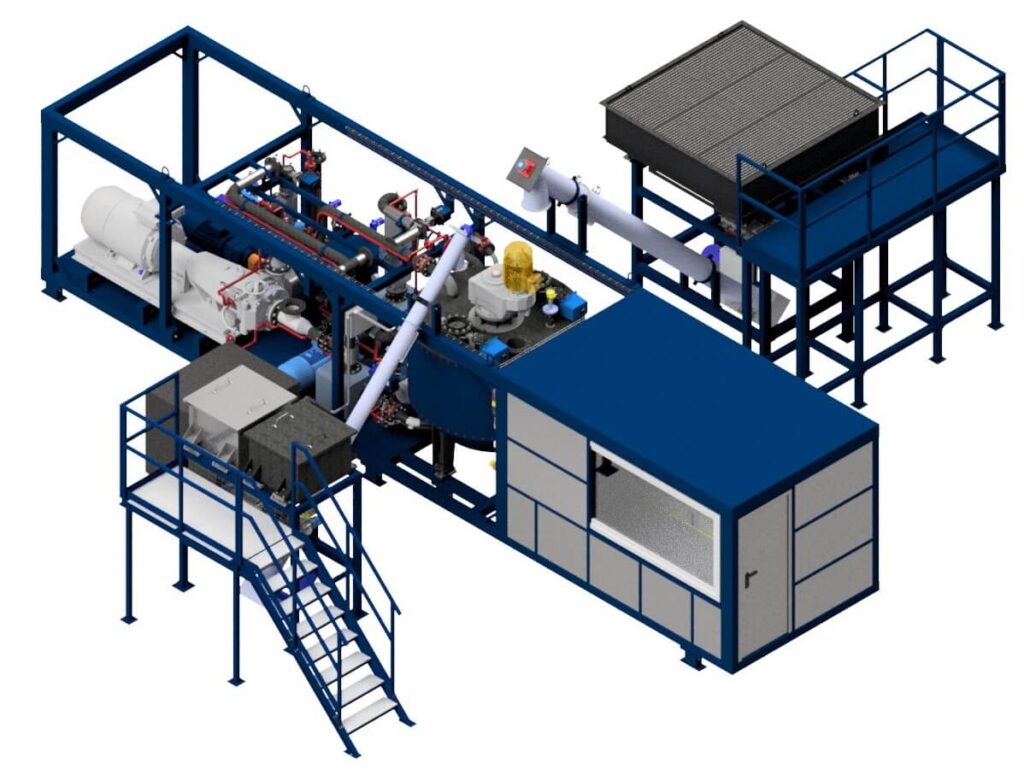

MB-50
The basic configuration of the unit includes
Bitumen modification block
in modular design:
- Bitumen dosing system;
- Plasticizer dosing system;
- Polymer feeding system;
- Mixing tank (Mixer);
- Homogenisation system;
- Automatic fire alarm system.
Control cabin:
- Automated Operator Workstation (main AOW);
- Access control system (ACS);
- Control cabinet;
- Climate control system;
- Lighting.
Optional equipment:
- Additional polymer feeding block;
- Additional system for supplying special additives;
- Additional Automated Operator Workstation (AOW);
- Tank and surfactant supply system (Surfactant Supply System);
- Video surveillance system.
The standard configuration of the control cabin includes:
- Automated Operator Workstation (AOW):
- personal computer;
- furniture with antistatic coating;
- contactless card reader.
- Control cabinet based on an industrial programmable logic controller (PLC);
- Climate control system;
- Automatic fire alarm system;
- Access control and management system (ACS);
- SMS notification system.
Optional:
- Additional Automated Operator Workstation (AOW);
- Video surveillance system;
- Printer.
Technical Specifications of the Homogenisation System
| Name of Component | Model / Type | Main Parameters | Notes |
|---|---|---|---|
| Colloid mill (MB-25) | Supraton 449-5.031) |
Drive power – 160 kW Rotation speed – up to 3000 rpm Capacity – up to 25 t/h |
Homogenisation: two-phase (dispersion + stabilization) in an adjustable rotor–stator gap |
| Colloid mill (MB-50) | MILL SIEFER TRIGONAL type SM-D3/HK2) |
Drive power – 160 kW Rotational speed – up to 3,000 rpm Capacity – up to 50 t/h |
Homogenisation in an adjustable rotor–stator gap |
| Booster pump (MB-25) | Gear pump R-105 (Victor Pump) |
Capacity – up to 37 m³/h Drive power – 15 kW Rotation speed – 287 rpm |
Provides stable feed to the mill Frequency-controlled drive |
| Booster pump (MB-50) | Gear-type HPS-55 (Victor Pump) |
Capacity – up to 30 m³/h Drive power – 18.5 kW Rotational speed – 450 rpm |
Ensures stable feed to the mill Variable frequency control |
| Mill electric motor | Siemens / equivalent | Power – 160 kW, IP55 | |
| Static mixer | Tubular |
DN100 Length – 1 m Mixing intensity – high Pressure drop – 10–20 kPa |
|
| Three-way valve | ARI ARMATUREN STEVI / equivalent |
DN 100 Input signal – 4–20 mA or 0–10 V Premio Plus 2G, 12 kN, power supply 100–240 V 50/60 Hz, IP65 |
|
| Mill heating system | Thermal oil | Maintains temperature at not less than 175 °C | Automatic regulation |
| Monitoring sensors | Siemens / equivalent | Temperature, pressure, and flow control | Data transmission to the APCS |
| Pipelines and valves | Steel, with thermal insulation | Operating temperature – up to 200 °C | Heated loop |
| Control system | APCS (Siemens PLC + SCADA) | Operating mode, pressure, and temperature control | Automatic coordination with other units |
1) ErichHahn provides the option to equip the unit with an alternative to the Supraton mill — the SIEFER TRIGONAL mill, type SM-290/HK.
2) ErichHahn provides the option to equip the unit with an alternative to the SIEFER mill — the Supraton 549-5.03 mill.
